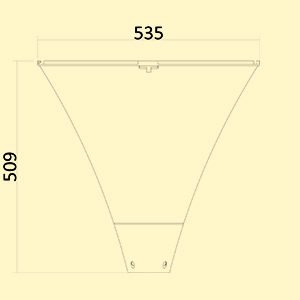

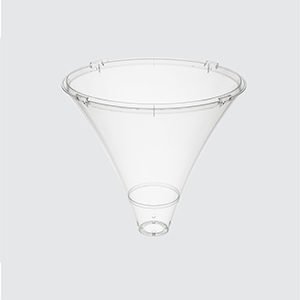

Transparent Body available in PMMA, UV resistant PC or UV stabilized PC.
Top-Down LED Solution Body
Description
| Code | Description | Material |
| 660.01.00.30 | URBAN – SCHERMO.PMI | Acrylic |
| 660.02.00.30 | URBAN – SCHERMO.PCI-SLX | UV resistant Polycarbonate |
| 660.03.00.30 | URBAN – SCHERMO.PCI | UV stabilized Polycarbonate |
Packing |
|||||
| Code | Pcs/Carton | Dim. cm | Vol. m3 | Net g | Gross g |
| 660.01.00.30 | 5 | 60.5×60.5×70 | 0.260 | 9375 | 11290 |
| 660.02.00.30 | 5 | 60.5×60.5×70 | 0.260 | 9375 | 11290 |
| 660.03.00.30 | 5 | 60.5×60.5×70 | 0.260 | 9375 | 11290 |
Canopy
Made in PA6 reinforced with glass beads, supplied complete with gasket and brass inserts.
| Code | Description | Material |
| 660.06.00.30 | URBAN – COPERTURA.PA6.RAL 7016 |
PA6 reinforced with glass beads
|
Packing |
|||||
| Code | Pcs/Carton | Dim. cm | Vol. m3 | Net g | Gross g |
| 660.06.00.30 | 5 | 58x58x16 | 0.054 | 6500 | 8250 |
Pole head
Pressure Die Cast Aluminium RAL 7016 epoxy powder paint finish – supplied with grub screws, fixing ring and IP66/67 cable gland.
| Code | Description | Material |
| 660.50.00.30 | URBAN – BASE.AL.RAL 7016 |
Die-cast Aluminium
|
Packing |
|||||
| Code | Pcs/Carton | Dim. cm | Vol. m3 | Net g | Gross g |
| 660.50.00.30 | 5 | 38x38x17 | 0.024 | 3555 | 4455 |

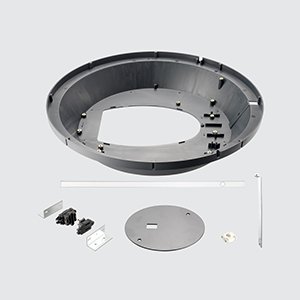

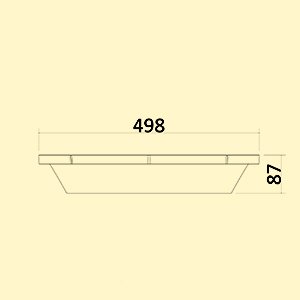

Optical Chamber Top-Down
Made in PA6 reinforced with glass beads RAL 7016 supplied complete with brass inserts, cable conduit tube, circuit breaker, pole head ceiling plate, screws and accessories.
| Code | Description | Material |
| 660.75.00.30 | URBAN – VANO CABLAGGIO TOP-DOWN.RAL7016 |
PA6 Reinforced glass beads
|
Packing |
|||||
| Code | Pcs/Carton | Dim. cm | Vol. m3 | Net g | Gross g |
| 660.75.00.30 | 5 | 54x54x19 | 0.06 | 6100 | 7300 |

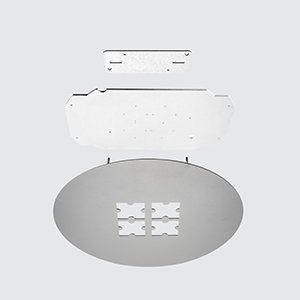

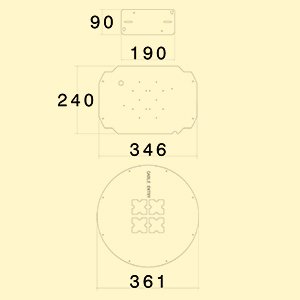

Vossloh LED Kit*
Kit composed of aluminium plate painted RAL 7016 and heat sink predisposed for Vossloh modules. Complete with driver plate, screws and fixing accessories.
*LED Roadway Light ME 2×2 LEDs – LED Industrial Light SYM II 2×2 LEDs – LED Constant Current Drivers K34
| Code | Description | Material |
| 660.85.00.30 | URBAN – KIT per LED Vossloh |
–
|
Packing |
|||||
| Code | Pcs/Carton | Dim. cm | Vol. m3 | Net g | Gross g |
| 660.85.00.30 | 5 | 38x38x10 | 0.015 | 10950 | 11450 |
On request:
Pole adaptor
Ø76 mm Pressure die cast aluminium RAL 7016 Adaptor complete with grub screws.
| Code | Description | Material |
| 660.55.00.30 | URBAN – ADATTATORE Ø76.AL.RAL 7016 |
Die-cast aluminium
|
Packing |
|||||
| Code | Pcs/Carton | Dim. cm | Vol. m3 | Net g | Gross g |
| 660.55.00.30 | 5 | 24x24x20 | 0.011 | 1880 | 2480 |
