AX1 Globoled Solution Globe

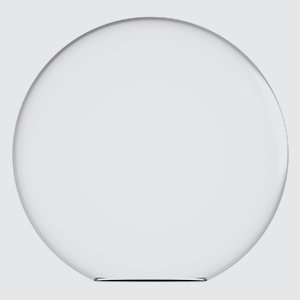

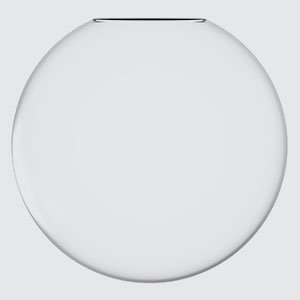

Transparent globe available in PMMA or UV stabilized PC.

SUITABLE FOR GLOBES SIZES G400 & G500 ACRILUX
GENERAL CATALOGUE

SKU: G400 Category:

Description

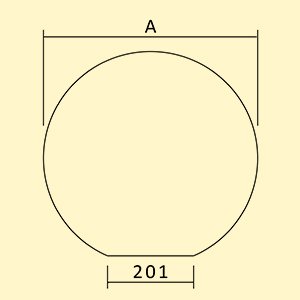

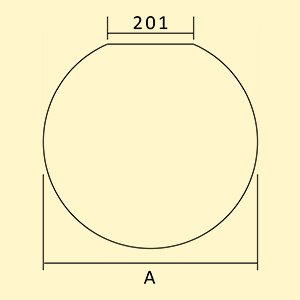

Dimension

Code A Hole
All Code G400 400 201
All Code G500 500 201

Packing

Code Pcs/Carton Dim. cm Vol. m3 Net g Gross g
All Code G400 2 41x41x79 0.133 2540 3990
All Code G500 2 51x51x100 0.260 4150 6600

WIRING COMPARTMENT

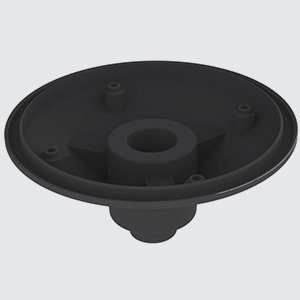

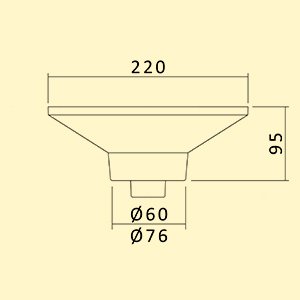

Pole head

Black PC for pole sizes Ø60mm or Ø76mm and fitted with gasket and fixing accessories.

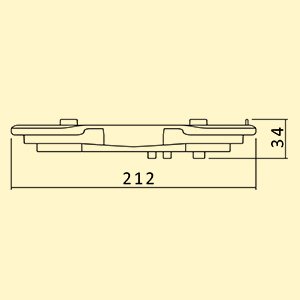

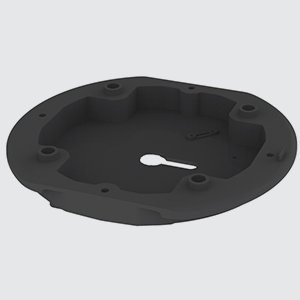

Plate

Clamping plate in black PC, c/w circuit breaker and coble clamp fixings.
Other colours available on request.

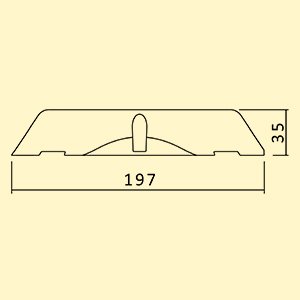

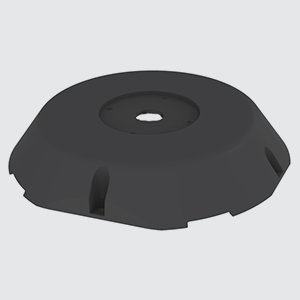

Cowl

Black PC Cowl/Fixing LED support conduit, driver and circuit breaker fixings.
Other colours available on request.

Code Description Material
640.01.00.50 AX VANO CABLAGGIO-60.PCN Black Polycarbonate
640.02.00.50 AX VANO CABLAGGIO-76.PCN Black Polycarbonate

Packing

Codice Pcs/Carton Dim. cm Vol. m3 Net g Gross g
All Code 10 43x43x42 0.078 7580 8530

AX1 Vossloh 2×2 LED Kit*

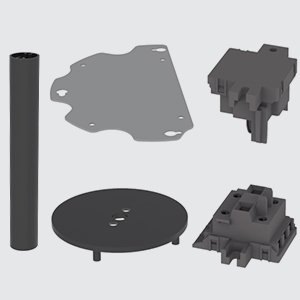

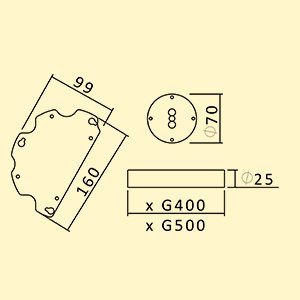

Kit of parts consists of:

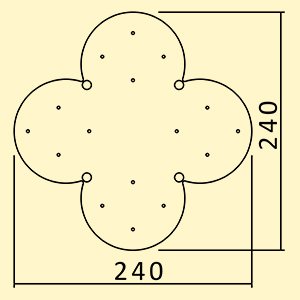

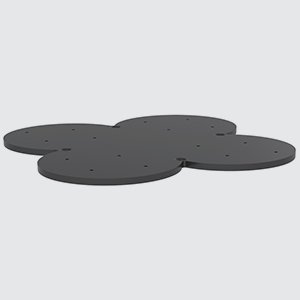

  • Painted aluminium heat sink

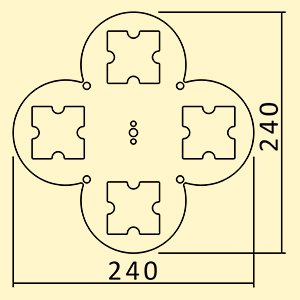

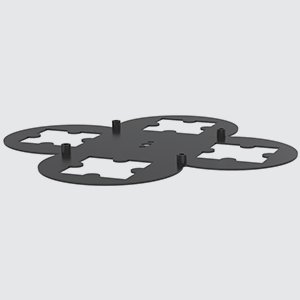

  • Perforated and painted steel plate
  • Painted tubular support in extruded aluminium
  • Driver plate in galvanized steel
  • Painted wiring support bracket in galvanized steel

*LED Industrial Light SYM II 2×2 or LED Roadway Light M-Class 2×2 with LED Constant Current Drivers M3

Code Description Material
640.10.00.50 AX1-400 KIT x LED – x G400
640.11.00.50 AX1-500 KIT x LED – x G500

Related products

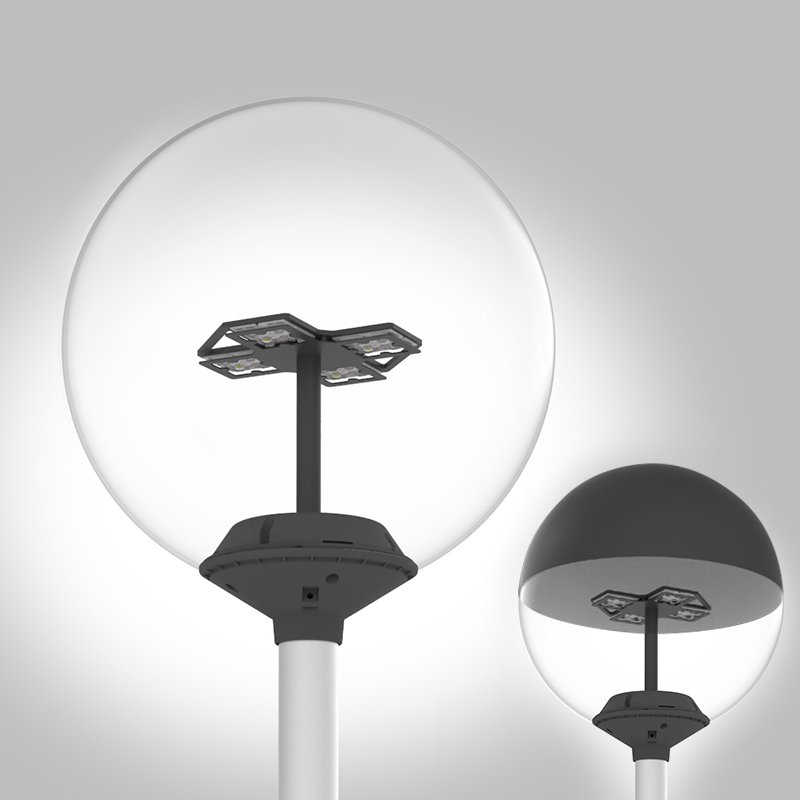

AX2 Globoled Solution
